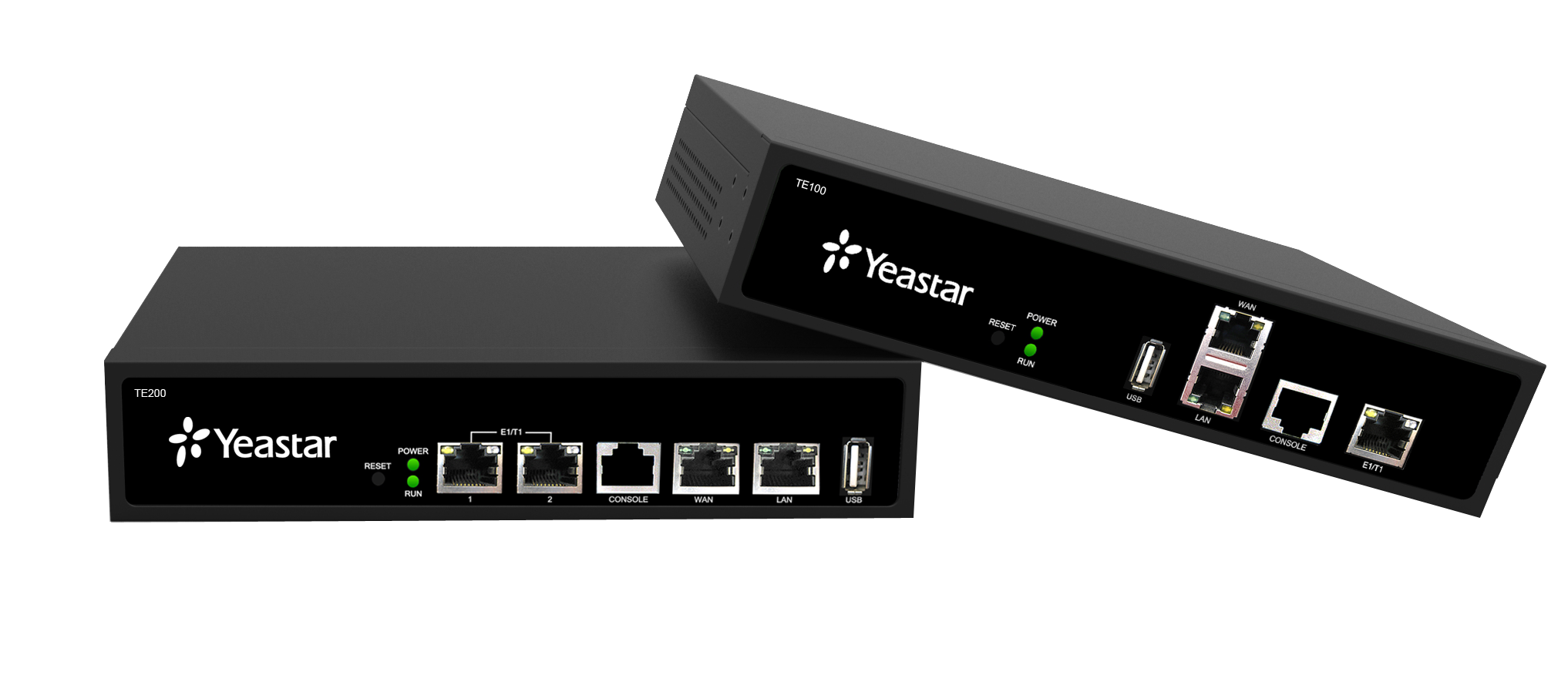

Yeastar TE Series E1/T1/PRI VoIP Gateway

Yeastar TE Series E1/T1/PRI VoIP Gateway

Yeastar TE100/200 offers SMBs cost effective additions to legacy telephone systems to bring the true benefits of VoIP. TE100/200 is a single or dual port VoIP E1/T1/J1 gateway (VoIP to E1/T1/J1, and E1/T1/J1 to VoIP) that supports up to 30 or 60 concurrent calls. It’s designed to bridge the gap between E1/T1/J1 and VoIP networks. Integrating TE100/200 into an existing network will allow inexpensive communication via SIP trunking. Also, it could connect VoIP systems with E1/T1/J1 service from legacy carriers .

TE100

TE200

Categories: , Tags: , , Brand:

Description

Models TE100 TE200
E1/T1/J1 Ports (Support PRI, E&M) 1 2
Protocol SIP (RFC3261)
Transport Protocol UDP, TCP, TLS, SRTP
Codec G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
Echo Cancellation ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF Mode RFC2833, SIP Info, In-band
Network DDNS, Firewall, PPPoE, Static IP, QoS, Static Route
Network Protocol FTP, TFTP, HTTP, SSH
PRI switch types Euro ISDN, nation, Q.SIG
Caller ID BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
LAN 1 10/100/1000Mbps
WAN 1 10/100/1000Mbps
Power Supply AC 100-240V (12V 2A)
Dimensions (L × W × H) (mm) 213 x 160 x 44
Operation Range 0°C to 40°C, 32°F to 104°F;
Storage Range -20°C to 65°C, -4°F to 149°F
Humidity 10-90% non-condensing
